PROCEED TO THE BOTTOM OF THIS PAGE FOR PART #'S AND DESCRIPTIONS
 |
 |
 |
 |
 |
 |
 |
 |
| ITEM NUMBER |
PART NUMBER |
DESCRIPTION |

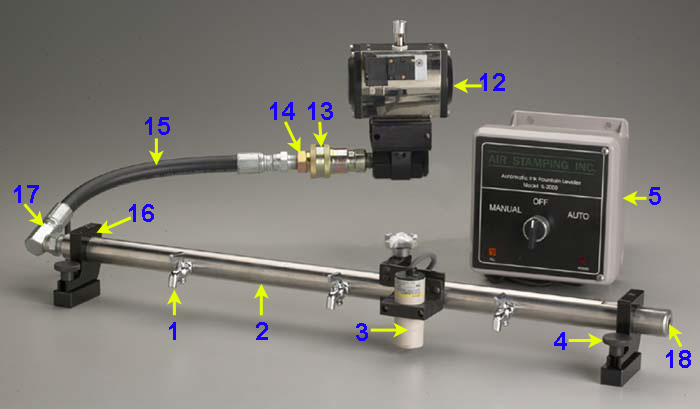

| 1 | AS-520 | 1/4" FAUCET CHROME - BIB |
| 2 | AS-502-(LENGTH) | MANIFOLD (LENGTH TO BE DETERMINED) |
| 3 | AS-557 | OMERON SENSOR W/ MALE CONNECTOR |
| 4 | AS-564 | KNURLED NUT WITH STUD |
| 5 | AS-720 | CONTROL BOX |

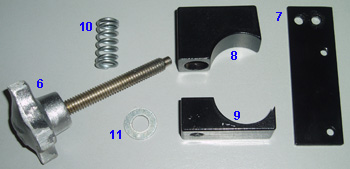

| 6 | AS-553 | HAND KNOB |
| 7 | AS-552 | SENSOR MOUNTING PLATE - LONG |
| 8 | AS-559 | SENSOR BRACKET - TOP |
| 9 | AS-560 | SENSOR BRACKET - BOTTOM |
| 10 | AS-554 | SPRING |
| 11 | AS-555 | WASHER |
| 12 | AS-585-A-50 | OPERATOR VALVE ASSEMBLY |
| 13 | AS-516-8 | 1/2" QUICK DISCONNECT FEMALE |
| 14 | AS-515-8 | 1/2" QUICK DISCONNECT MALE |
| 15 | AS-531-(LENGTH) | 1/2" HOSE ASSEMBLY (LENGTH TO BE DETERMINED) |
| 16 | AS-561 | MANIFOLD BRACKET |
| 17 | AS-510 | 1/2' ELBOW MPT TO MPT |
| 18 | AS-514 | 1/2" PIPE PLUG - DRY SEAL |

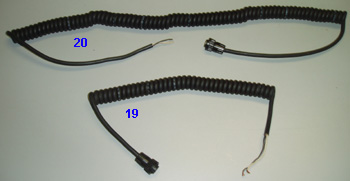

| 19 | AS-592 | COILED CORD W/FEMALE PLUG - 6' LONG |
| 20 | AS-592-1 | COILED CORD W/FEMALE PLUG - 12' LONG |

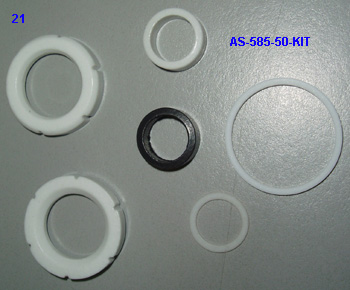

| 21 | AS-585-50-KIT | ACTUATOR SEAL KIT |

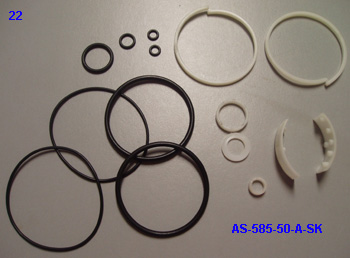

| 22 | AS-585-50-A-SK | BALL VALVE SEAL KIT |

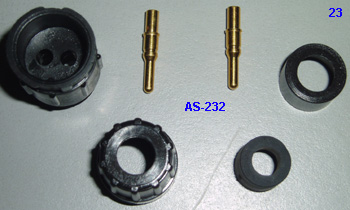

| 23 | AS-232 | MALE CONNECTOR |

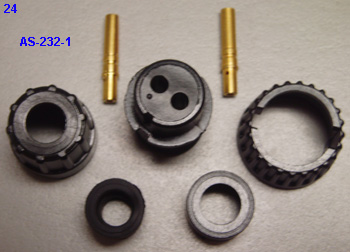

| 24 | AS-232-1 | FEMALE CONNECTOR |

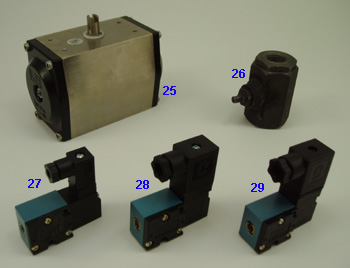

| 25 | AS-31-11N | INK VALVE ACTUATOR |

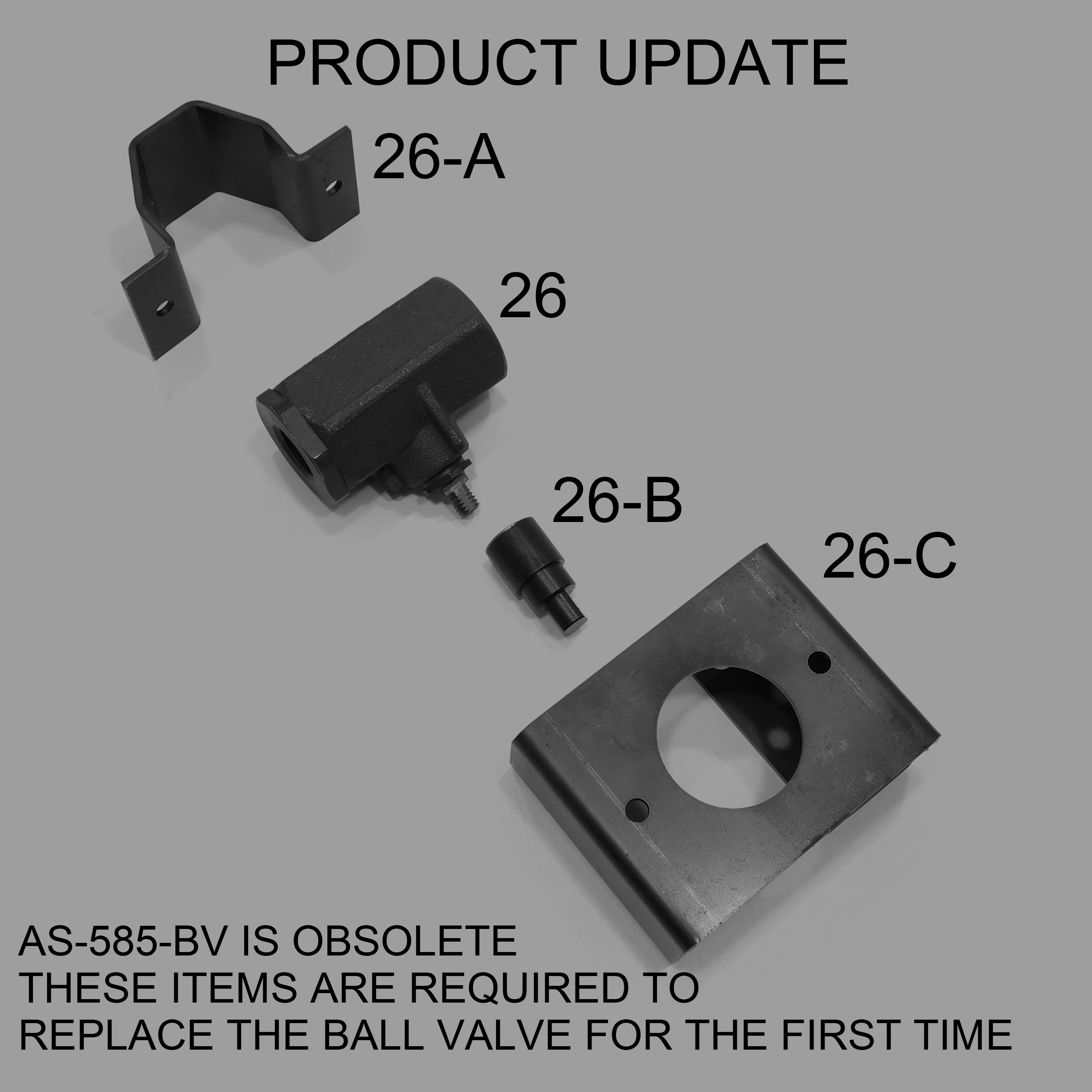

| 26* | AS-585-50BV | 1/2" BALL VALVE (OBSOLETE) |
| 26 | AS-585-50BV-1 | 1/2" BALL VALVE (REPLACEMENT) |
| 26-A | AS-587 | STRAP (REPLACEMENT) |
| 26-B | AS-588 | COUPLING (REPLACEMENT) |
| 26-C | AS-28-11B | BALL VALVE MOUNT (MODIFIED HOLE) |
| 27 | AS-585-MAC-3 | 120VAC MAC VALVE - SMALL 90 |
| 28 | AS-585-MAC-2 | 120V MAC VALVE - LARGE 90 |
| 29 | AS-585-MAC-1 | DC MAC VALVE - LARGE 90 |
